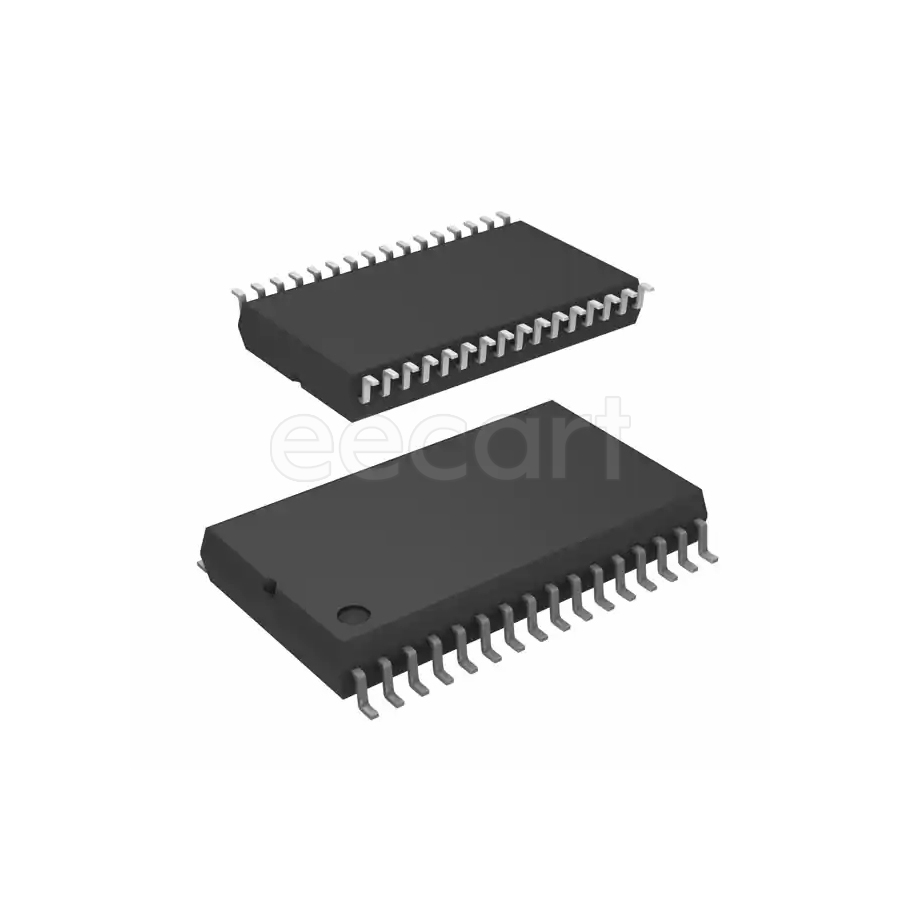

MC33879APEK
Manufacturer:
Nxp Semiconductors
Mfr.Part #:
MC33879APEK
Datasheet:
Description:
Power Switch ICs - Power Distribution SOIC-32 SMD/SMT Turn-On Delay Time:50 µs Turn-Off Delay Time:100 µs 1.4 Ω
| Parameter | Value |
|---|---|
| Length | 11.1 mm |
| Width | 7.6 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 32 |
| Resistance | 750 mΩ |
| Height | 2.65 mm |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 0.501 g |
| Type | High Side, Low Side |
| Current Rating | 1.2 A |
| Interface | SPI |
| Min Input Voltage | 5.5 V |
| Output Current | 600 mA |
| Operating Supply Voltage | 3.1 V to 5.5 V |
| Output Type | N-Channel |
| Max Power Dissipation | 1.7 W |
| Max Supply Voltage | 27.5 V |
| Min Supply Voltage | 5.5 V |
| Max Output Current | 600 mA |
| Turn-On Delay Time | 50 µs |
| Turn-Off Delay Time | 100 µs |
| Max Supply Current | 24 mA |
| Max Input Voltage | 26.5 V |
| Number of Outputs | 8 |
| Clamping Voltage | 45 V |
| Nominal Input Voltage | 27.5 V |
| Number of Drivers | 2 |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Voltage |
| Chemistry/Technology | |
| Schedule B | 8542390000 |
| On Resistance (RON) | 1.4 Ω |
| Applications | |
| Load Voltage | 5.5 V to 27.5 V |
| Motor Type - Stepper | |
| Motor Type - AC, DC | |
| Current Limit | 0.6 A to 1.2 A |
